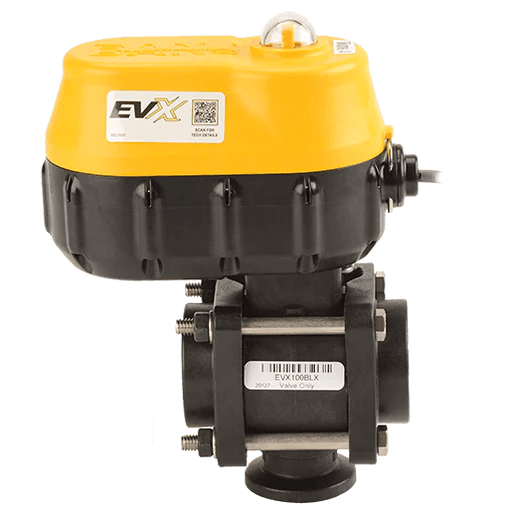

Banjo 3/4 12Volt Ball Valve - Full Port Bottom Load

The latest advancements in electric actuator technology and valve design engineered with Banjo reliability.

Proprietary polypropylene formulation ensures durability and enables injection molding to precision tolerances

• Welded construction supports sleek, compact valve design while eliminating a leak point
• Bottom-located threaded inserts provide versatile mounting solution
• Hollow stainless steel ball lessens weight and maintains valve performance
• Female NPT and manifold flange connections offer plumbing options
• Modular design facilitates easy actuator and valve replacement
• Attachable handle is available for purchase to turn into manual valve

Wiring:

ON/OFF Valves
• Red = +12V DC
• Black = Ground
• White = +12VDC (Open) 0VDC (Close)

• Thread size: 3/4" Female NPT - Third Outlet is flanged
• Max pressure: 300 psi
• Material: Fiberglass reinforced polypropylene
• Voltage: 12 VDC
• 1" opening thru ball
• 316 SS ball and stem
• SS hardware
• PTFE seats
• FKM stem seals
• Open/closed indicator
• On/Off is 3/4 second response time
• IP68 waterproof
• Actuator rated to 500,000 cycles
• Valve rated to 50,000 cycles leak free
• 100G's shock rating
• -20° to 150° degree operating temperature
