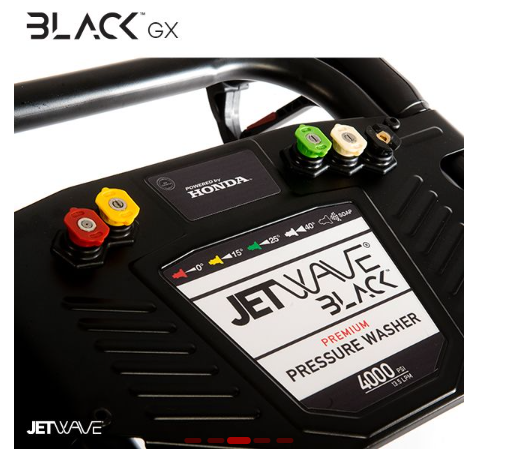

Small Frame, Plenty of Power

• AAA™ Comet™ Italian made triplex plunger pump delivers performance & reliability.
• Industrial Honda™ GX270 pull start series engine.
• Jetwave Safety System™ (JSS) safety valve to prevent over pressurisation.
• 13” Pneumatic tyres.
• 0°, 15, 25, 40 and soap snap-on nozzles.
• Dual M22 screw hose coupling system.

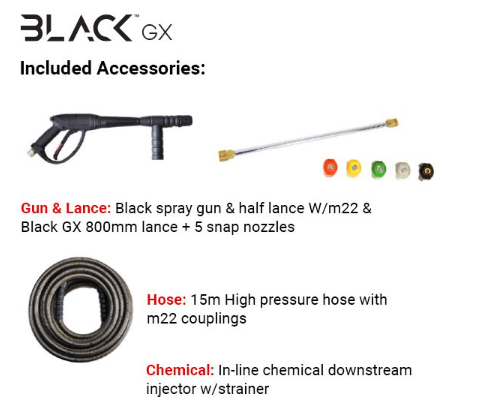

Black GX Included Accessories:

• Gun: Black GX spray gun with half lance.
• Lance: 800mm lance + 5 snap on coloured nozzles.
• Hose: 15m double wire braid high pressure hose with M22 couplings.
• Chemical: In-line chemical downstream injector with strainer and hose pickup.

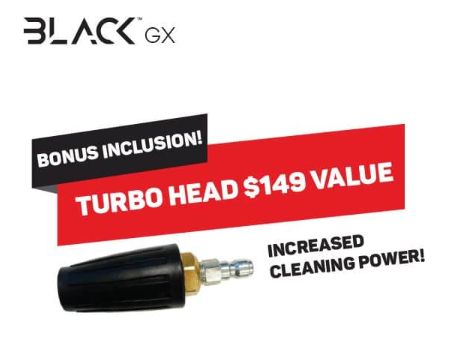

• Bonus Inclusion: Turbo head with snap tail for increased cleaning power at the nozzle.

TECHNICAL DATA	BLACK GX
Product Code	CW4000-13.5P
Pressure/Flow Rate	4000 PSI (275 BAR) / 13.5 L/PM (810 L/PH) / 3.5 GPM
Max Water Inlet Temp	60°C / 140°F
Class	A (3,712 Bar/Litres)
Usage Frequency/Duty Cycle	Semi Professional - Weekly
Nozzle Size	035
Frame Structure	Heavy duty steel black powder coat 2-wheel trolley
MOTOR FEATURES
Engine/Power	Honda™ GX270 Pull Start (air cooled) 9HP / 270cc
Fuel Type/Capacity/Protection	Unleaded / 4.5L / Low Oil Shutdown
HYDRAULIC FEATURES
Pump/Head/Pistons	Plunger Triplex / Brass / Ceramic
Motor Pump Coupling/Pump RPM	Direct Drive / 3400RPM
Unloader Valve	Integral
Safety Valve	Y
DIMENSIONS & WEIGHT
Machine Dimensions/Weight	940mm(L) x 560mm(W) x 680mm(H) / 66KG
WARRANTY(S)
Unit/Pump Warranty	1 Year Unit & Pump / 3 Year Honda GX Warranty
