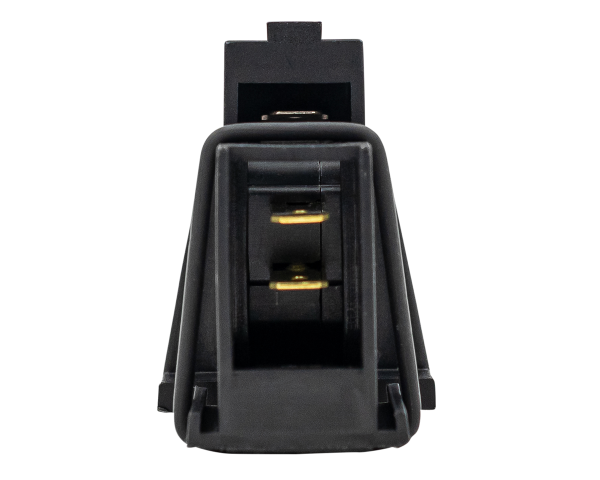

Delavan 7800 Series Fat Boy 12V Pump Pressure Switch Assembly
Place Order Before 2pm AEST For Same Day Dispatch.
Pickup currently unavailable at SOFTWASH AUSTRALIA 2023
Delavan 7800 Series Fat Boy 12V Pump Pressure Switch Assembly
SOFTWASH AUSTRALIA 2023
691 Pine Ridge Road
Biggera Waters QLD 4216
Australia
Restore precise automatic demand functionality to your softwash pump with the genuine Delavan 7800 Series Fat Boy 12V Pressure Switch Assembly (7800-PSW-100). Specially designed for Delavan 7800, 7900, and 5900 series 12-volt demand diaphragm pumps, this replacement microswitch module automatically senses system line pressure.
It shuts the motor off when the spray gun valve is closed and instantly restarts flow upon trigger pull. Engineered to operate across a 60 to 100 PSI shutoff window, it prevents continuous pump motor overrun, protects internal diaphragms from rapid pressure spikes, and significantly reduces 12V battery drain on softwash skids and chemical spray rigs.
Technical Specifications
- Brand / Manufacturer: Delavan Ag Pumps
- OEM Part Number: 7800-PSW-100 (Replaces 7800-PSW)
- Compatibility: Delavan 7800 Series (Fat Boy 5.5 GPM / 7812 / 7822FS), 7900 Series, and 5800/5900 Series 12V Demand Diaphragm Pumps
- Operating Voltage: 12V DC
- Pressure Range: 60 PSI to 100 PSI Auto-Shutoff
- Mounting Configuration: Horizontal-mount switch housing
