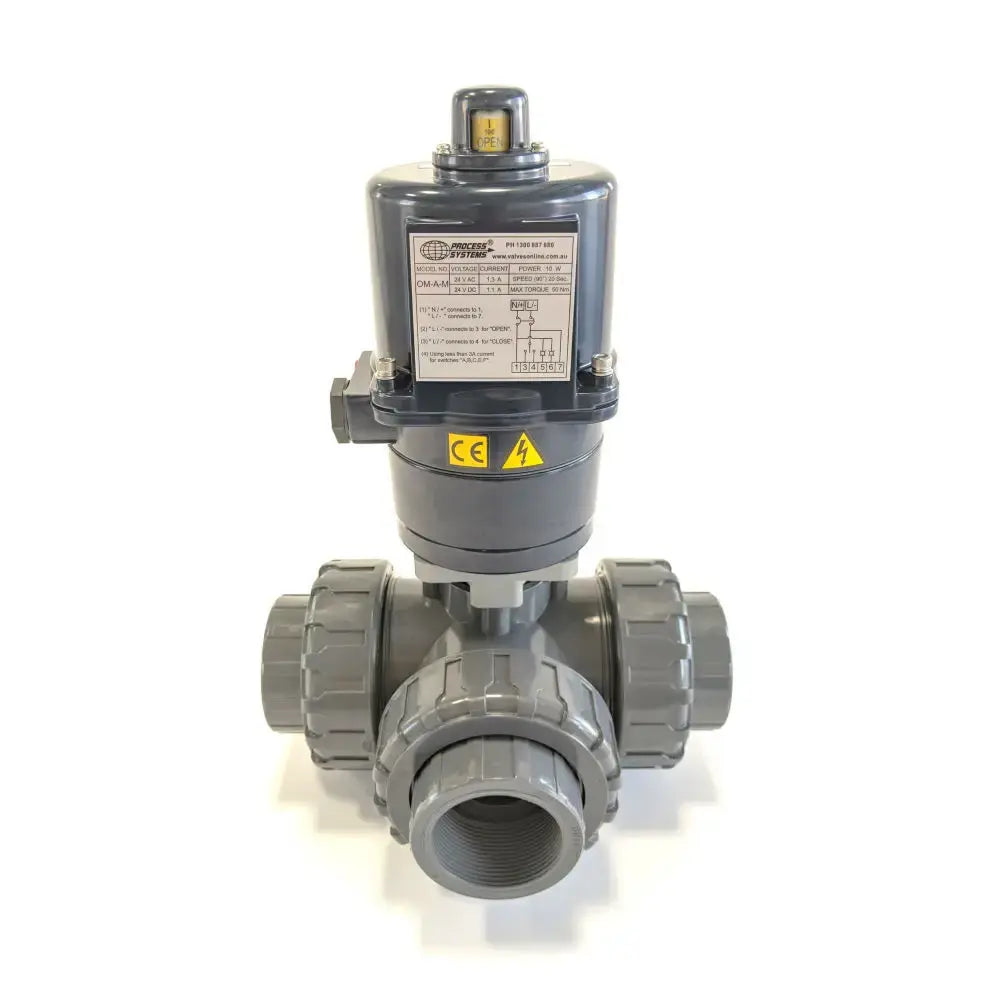

UV-Stabilized 3-Way Electric PVC Ball Valve (True Union (L-Port & T-Port))
Place Order Before 2pm AEST For Same Day Dispatch.
Pickup available at SOFTWASH AUSTRALIA 2023
Usually ready in 24 hours
UV-Stabilized 3-Way Electric PVC Ball Valve (True Union (L-Port & T-Port))
SOFTWASH AUSTRALIA 2023
691 Pine Ridge Road
Biggera Waters QLD 4216
Australia
Available in both L-Port and T-Port flow configurations, the valve features chemical-grade PTFE (Teflon) seats and a unique double stem seal system (EPDM standard, Viton optional). Designed with an integrated Chem Lock retainer insert, the true union body can be disconnected for routine maintenance without risking leaks from the valve body in the closed position. Select between Solvent Weld ends (ANSI Schedule 40 & 80) or BSP Threaded ends (ISO 7.1) for seamless plumbing integration.
Key Features & Benefits
- UV-Stabilized PVC Body: Engineered to prevent sun degradation, cracking, and chalking in direct sunlight and outdoor environments.
- L-Port & T-Port Flow Configurations: Flexible flow path arrangements for diverting, mixing, or isolating multiple fluid lines.
- Motorized Actuator Integration: Electric actuator provides smooth, reliable automated switching for remote or automated control panels.
- Double Stem Seal & Chem Lock Safety: Dual stem seals prevent shaft leaks, while the Chem Lock insert retains the ball during union servicing.
- Superior Chemical Resistance: Non-metallic wetted parts with PTFE seats resist bleach, acids, fertilizers, and saltwater corrosion.
- Versatile Plumbing Terminations: Offered with Solvent Weld (ANSI Sch 40/80) or BSP Threaded end connectors (ISO 7.1).
Specifications
- Valve Type: 3-Way Electric True Union Ball Valve
- Body Material: UV-Stabilized PVC
- Port Configuration: L-Port or T-Port (Selectable)
- Seat Material: PTFE (Teflon)
- Stem Seal Material: EPDM (Standard) / Viton (Optional)
- End Connections: Solvent Weld Ends (ANSI Sch 40 & 80) or BSP Female Threaded Ends (ISO 7.1)
- Pressure & Leak Protection: Integrated Chem Lock End Insert
- Actuator Voltage Options: 12V DC / 24V DC / 240V AC (Standard Industry Actuator Mounting)
