Gardiner Quick-LoQ Gooseneck Valve

Easy On/Off Flow Control

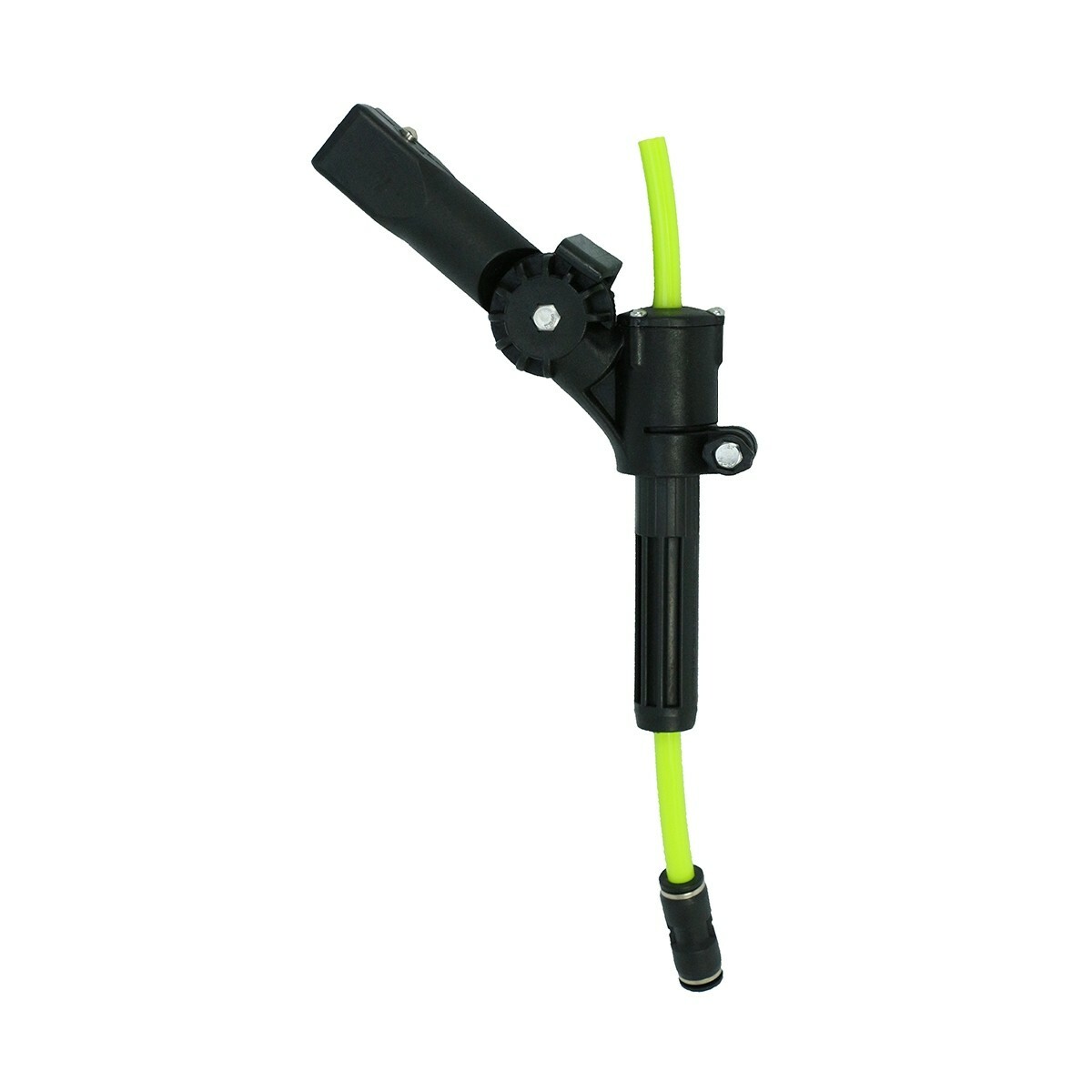

Gardiner Quick-LoQ Goosneck Valve

• Gardiner Gooseneck Valve with Patented Inner Valve Technology
• Quick and easy to use: Twist the handle clockwise to open and twist it counterclockwise to close
• Adjustable Tension Control to allow for different brush sizes and pole heights
• Maximum recommended pole height - 50ft
• Can be operated with your hand for use on ground floor windows
• Improves speed of water control compared to a manual valve

Fitting Instructions:

• Remove the old gooseneck from the pole.
• Connect the hose from the pole to the 8mm push-fit connector on the gooseneck valve.
• Insert the gooseneck valve into the top of the pole, push it fully in, and close the top clamp. Ensure the clamp is tight so the gooseneck doesn't spin.
• Attach a brush to the gooseneck and connect the T connector to the valve's top tube.

Troubleshooting:

• No water flow: Remove the gooseneck, reverse the hose connections, and flush out dirt.
• Water not shutting off: Ensure the device is firmly clamped and not blocked. Follow the same steps as above
• Too stiff: Loosen the bolt cap adjuster until the tension is comfortable.
• Too loose: Tighten the bolt cap adjuster to increase tension.

How to Operate:

• Extend the pole to the window, position the brush in the top left corner, and twist the pole clockwise.
• When finished, move the brush to the bottom right corner and twist the pole counterclockwise.
• Move to the next window and repeat.
• Before use, ensure all pole clamps are tightened to hold the sections securely.
• Adjust the gooseneck valve to the desired tension. For high work, loosen it compared to ground-level work.
