Jobe Trough Float Valve (3/4" Inch)
Place Order Before 2pm AEST For Same Day Dispatch.
Pickup currently unavailable at SOFTWASH AUSTRALIA 2023
Jobe Trough Float Valve (3/4" Inch)
SOFTWASH AUSTRALIA 2023
691 Pine Ridge Road
Biggera Waters QLD 4216
Australia

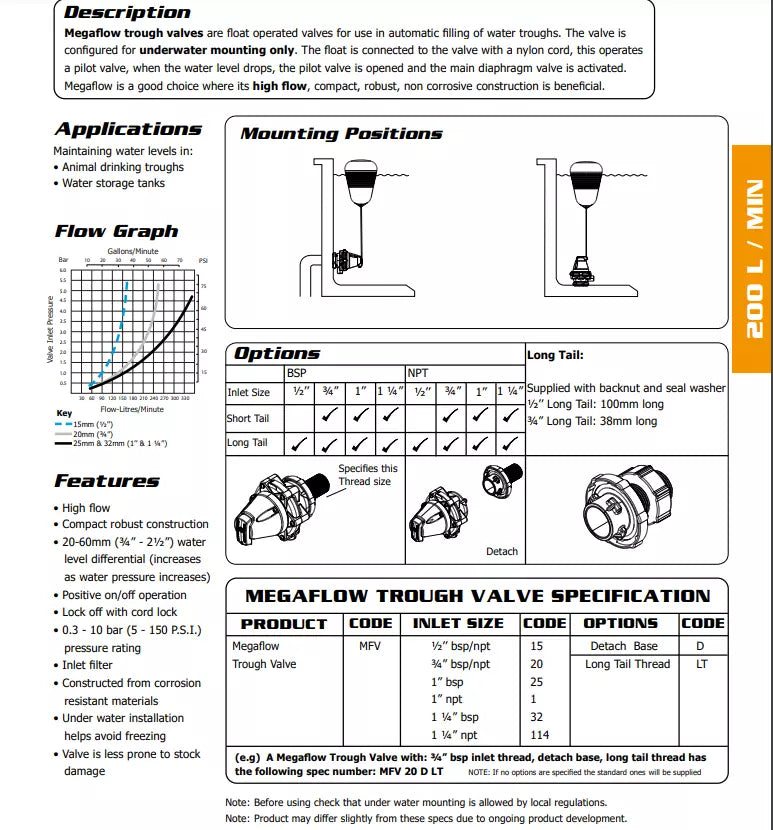

Automatically maintain consistent water levels in high-demand supply tanks and troughs with the Jobe Trough Float Valve (3/4"). Designed for underwater mounting applications, this compact and extremely robust valve uses an advanced pilot-operated diaphragm mechanism to deliver exceptional flow rates while preventing water hammer and dry-running pumps.
Operation is simple and reliable: a weighted float connects to the internal valve mechanism via a durable nylon cord. As the fluid level drops, the float tension pulls open a small pilot valve, which immediately activates the main diaphragm valve to deliver rapid, high-volume replenishment. Constructed from non-corrosive, high-impact materials, the Jobe valve is engineered to perform dependably in harsh agricultural, commercial water storage, and mobile wash buffer tank environments.
Key Features & Benefits
- Pilot-Operated Diaphragm Mechanism: Uses water pressure to drive the main diaphragm, delivering high flow rates with smooth, positive shut-off.
- Submerged / Underwater Mounting: Specially configured for underwater installation, keeping the valve body protected and reducing splash noise during filling.
- Durable Nylon Cord Linkage: Connects the float directly to the pilot arm, eliminating rigid metal float rods that can bend or bind in tight tank setups.
- Corrosion-Proof Construction: Manufactured from high-grade, non-corrosive materials designed to withstand water treatment chemicals and continuous outdoor exposure.
- High-Flow Output: Delivers rapid tank replenishment to keep up with high-draw pumps and heavy water demand on commercial jobsites.

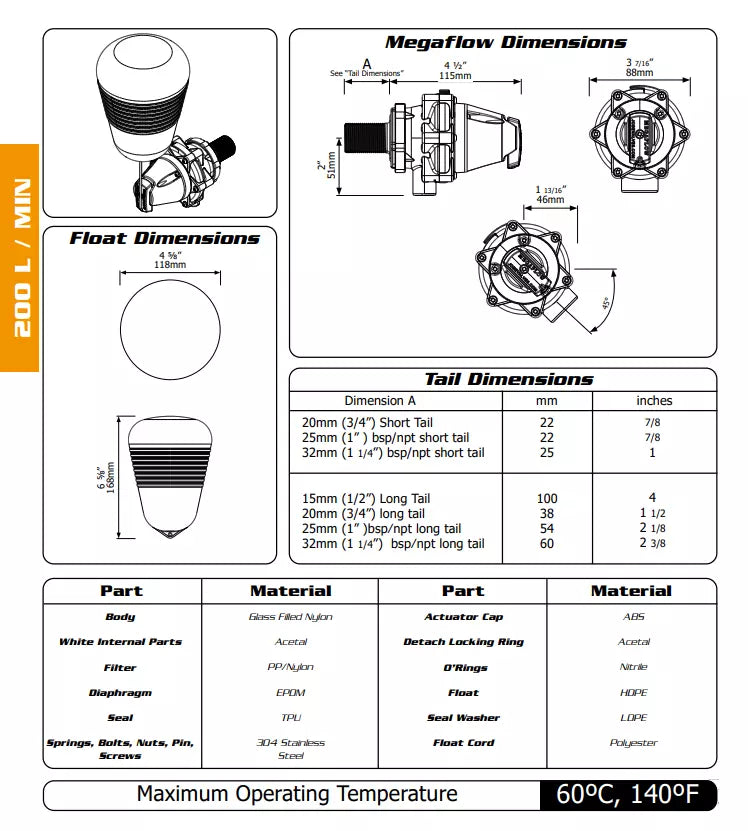

Specifications
- Brand: Jobe
- Thread Inlet Size: 3/4" Male BSP
- Mounting Configuration: Underwater / Submerged Mounting Only
- Valve Mechanism: Cord-Actuated Pilot Valve with Diaphragm Shut-Off
- Float Connection: Heavy-Duty Nylon Cord
- Body Construction: High-Impact Non-Corrosive Polymer
