Titan 12V DC Hose Reel Replacement Drive Motor, Model 7065
Place Order Before 2pm AEST For Same Day Dispatch.
Pickup available at SOFTWASH AUSTRALIA 2023
Usually ready in 24 hours

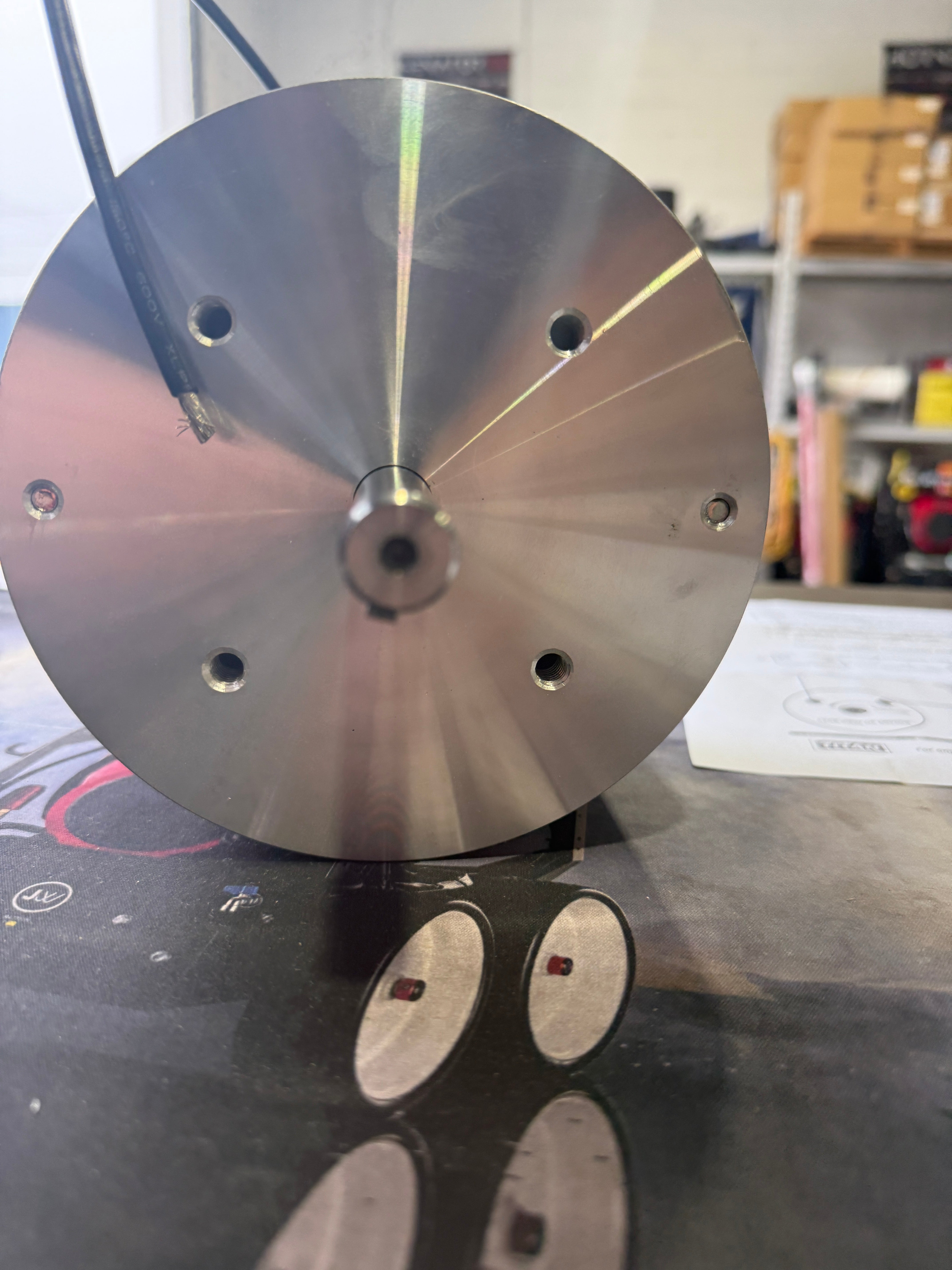

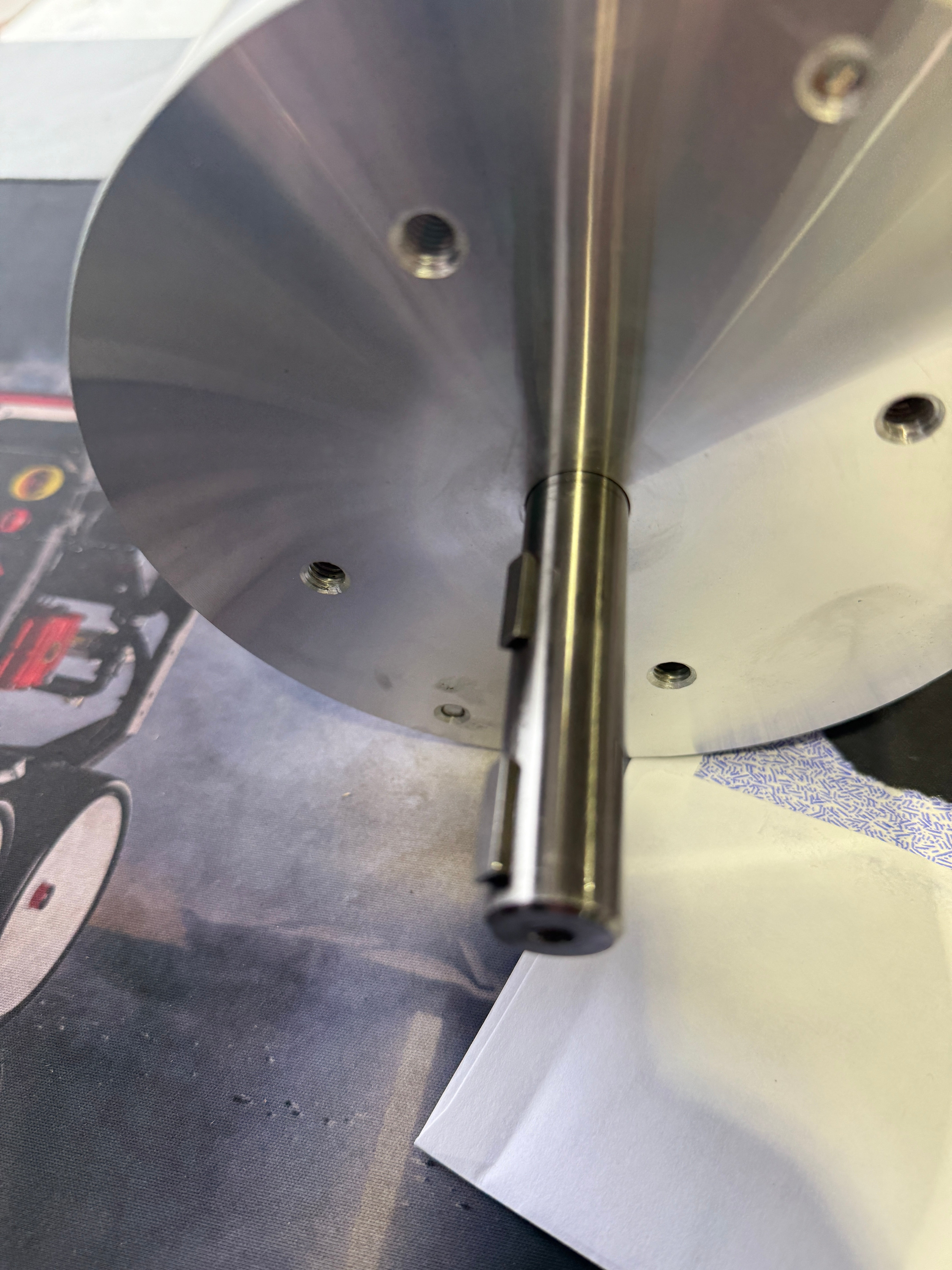

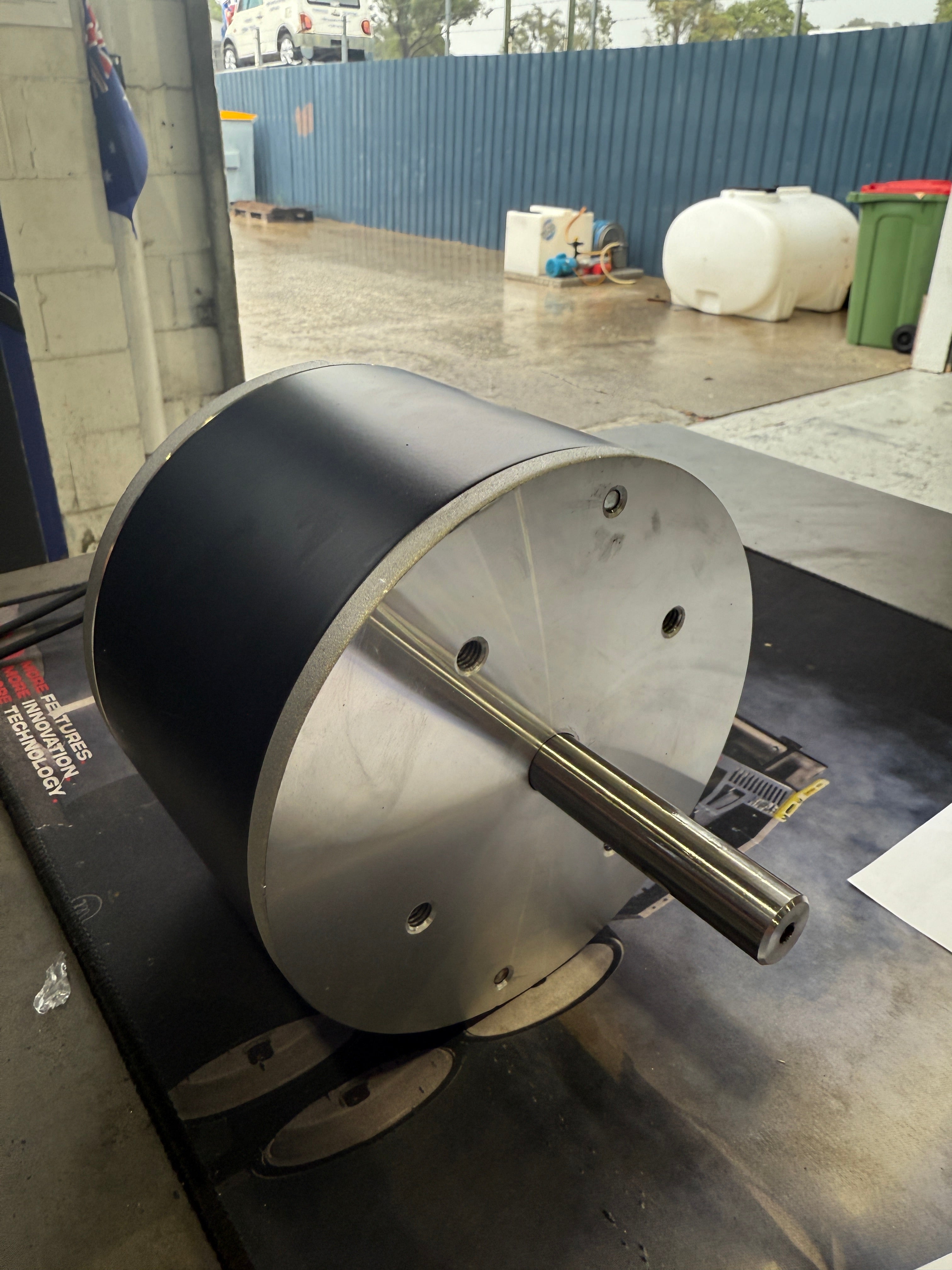

Titan 12V DC Hose Reel Replacement Drive Motor, Model 7065
SOFTWASH AUSTRALIA 2023
691 Pine Ridge Road
Biggera Waters QLD 4216
Australia
Restore full auto-wind capability to your commercial spray rig with the genuine Titan Model 7065 12V DC Electric Drive Motor. Designed specifically as a direct OEM replacement for Titan motorized hose reels, this 1/3 HP motor delivers reliable high-torque retrieval to keep your softwash and pressure washing operations running smoothly without downtime.
Built with a Totally Enclosed Non-Ventilated (TENV) housing and Class B insulation, the Model 7065 motor is engineered to resist moisture, dirt, and chemical exposure commonly encountered on job sites. It delivers 650 RPM of pulling power under standard 12V DC battery systems, making it the ideal replacement part for worn or failed hose reel drive units.
Key Features & Benefits
- Direct OEM Replacement: Drop-in replacement designed specifically for Titan 12V electric hose reel assemblies.
- High-Torque Performance: 1/3 HP motor running at 650 RPM handles heavy, water-filled chemical and high-pressure hose lines effortlessly.
- Weather & Chemical Resistant: TENV (Totally Enclosed Non-Ventilated) enclosure protects internal windings from chemical splashes, overspray, and environmental contaminants.
- Heavy-Duty Electrical Design: Rated for 35 AMPS with Class B insulation to ensure safe, consistent performance during active job site hose retrieval.
- Reduced Job Site Downtime: Quick swappable design allows fast restoration of motorized hose rewind functionality.

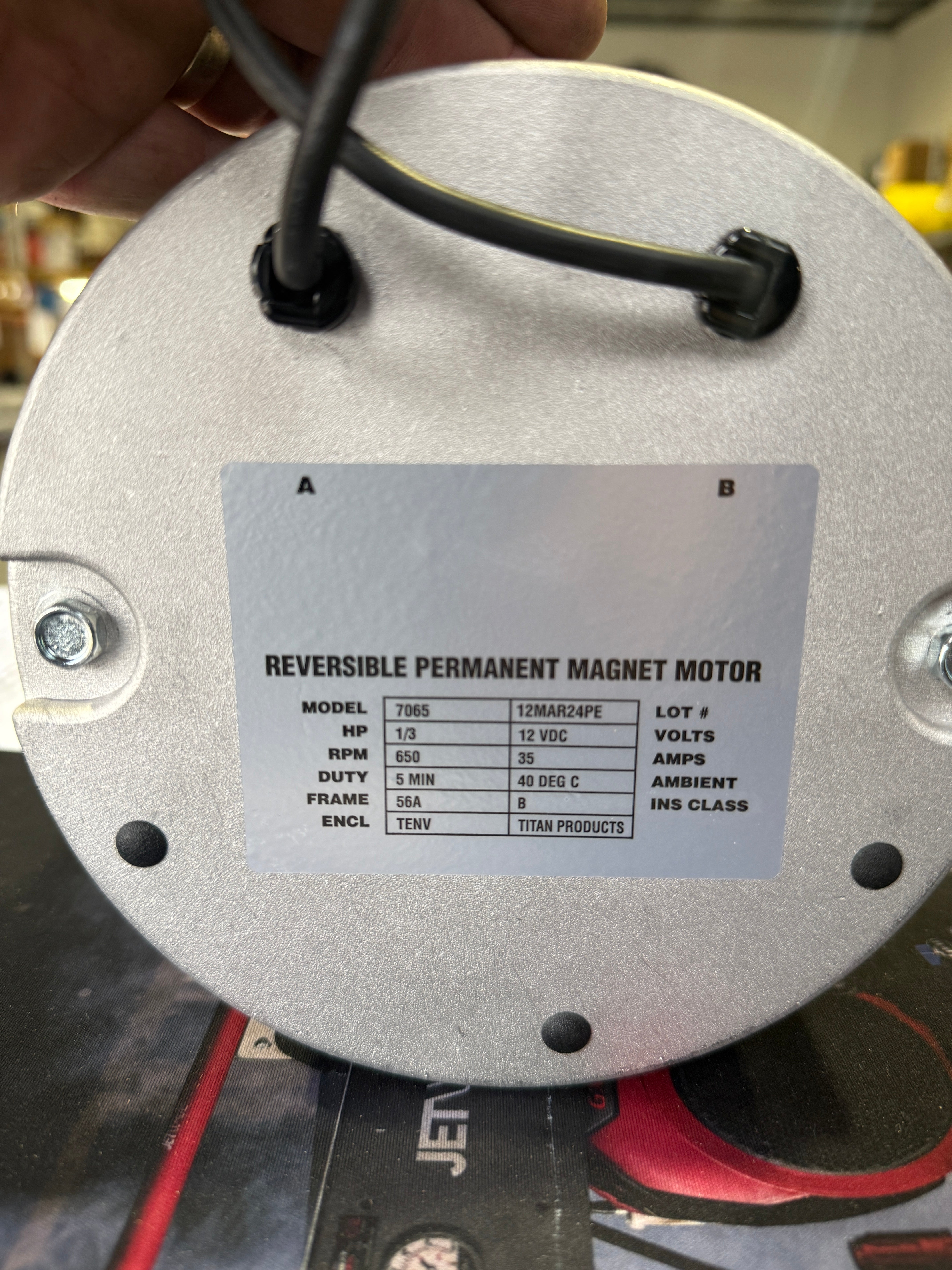

Specifications
- Model Number: 7065
- Product Type: Replacement 12V DC Hose Reel Drive Motor
- Power Output: 1/3 HP
- Operating Voltage: 12V DC
- Current Draw: 35 Amps
- Speed: 650 RPM
- Duty Cycle: 5 Minutes Continuous
- Enclosure Rating: TENV (Totally Enclosed Non-Ventilated)
- Insulation Rating: Class B
- Compatibility: Titan 12V Electric Hose Reel Series
If your order is placed before 2:00pm, we will try to post same day.
We use a range of couriers to provide you with the best possible freight pricing.
If your order does not ship immediately, we are likely waiting on a courier update. Please refer to your account for updates or contact us to find out more.
We are happy to work with you if you need a return. Please contact us to discuss.
