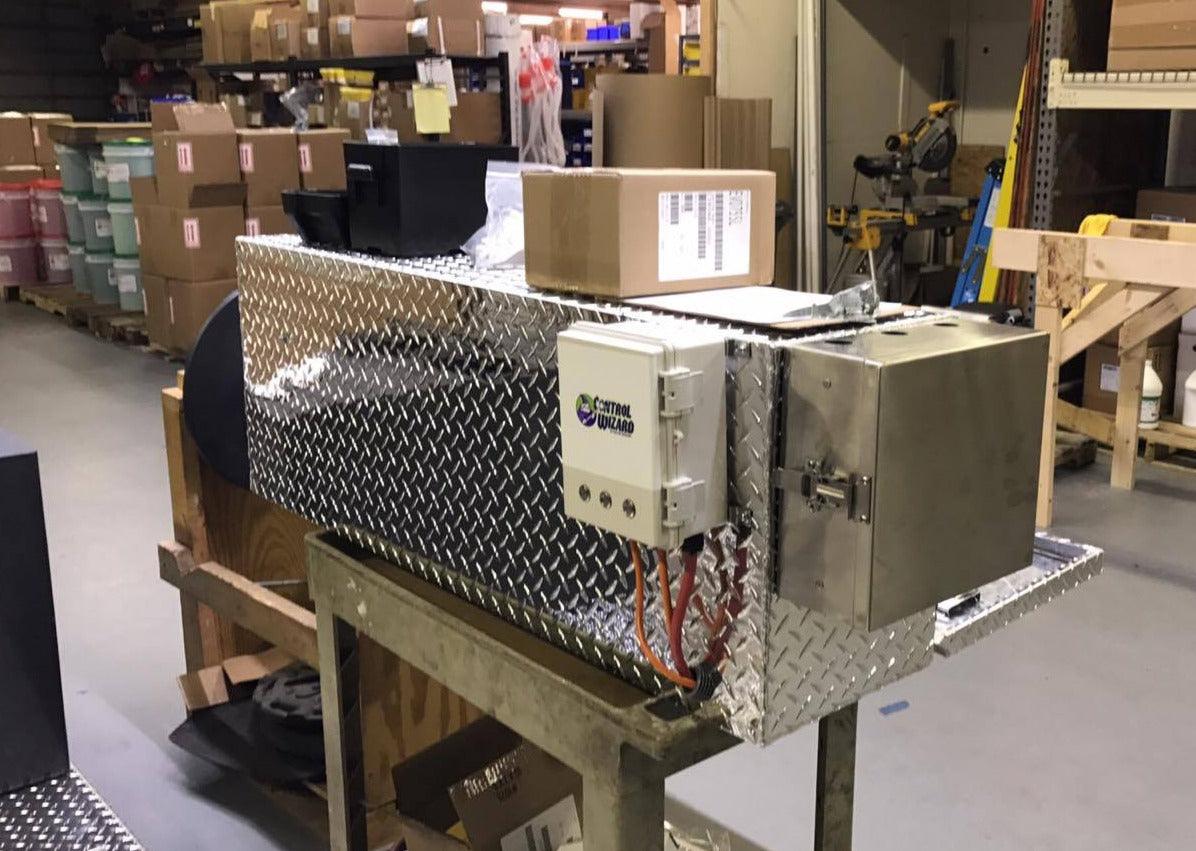

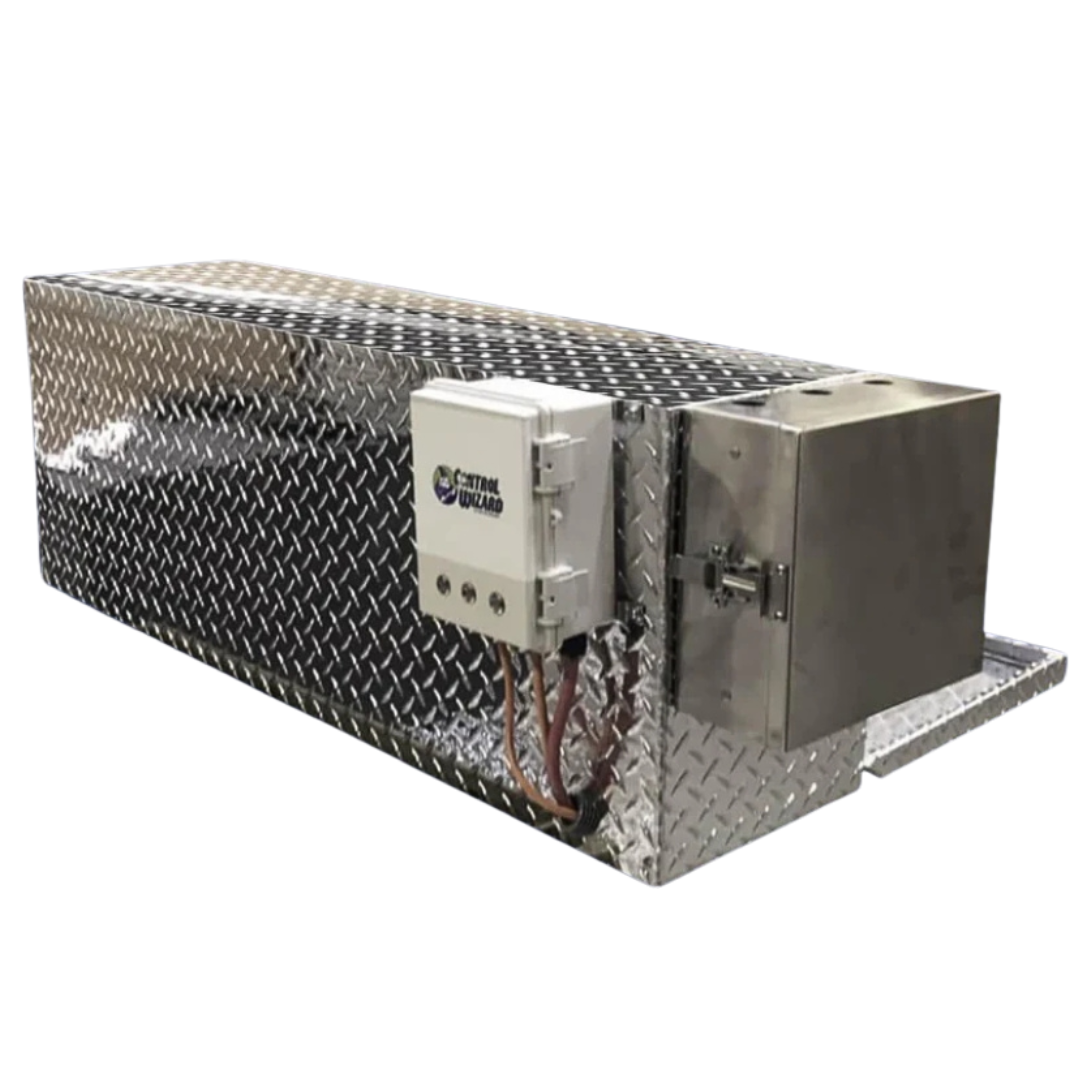

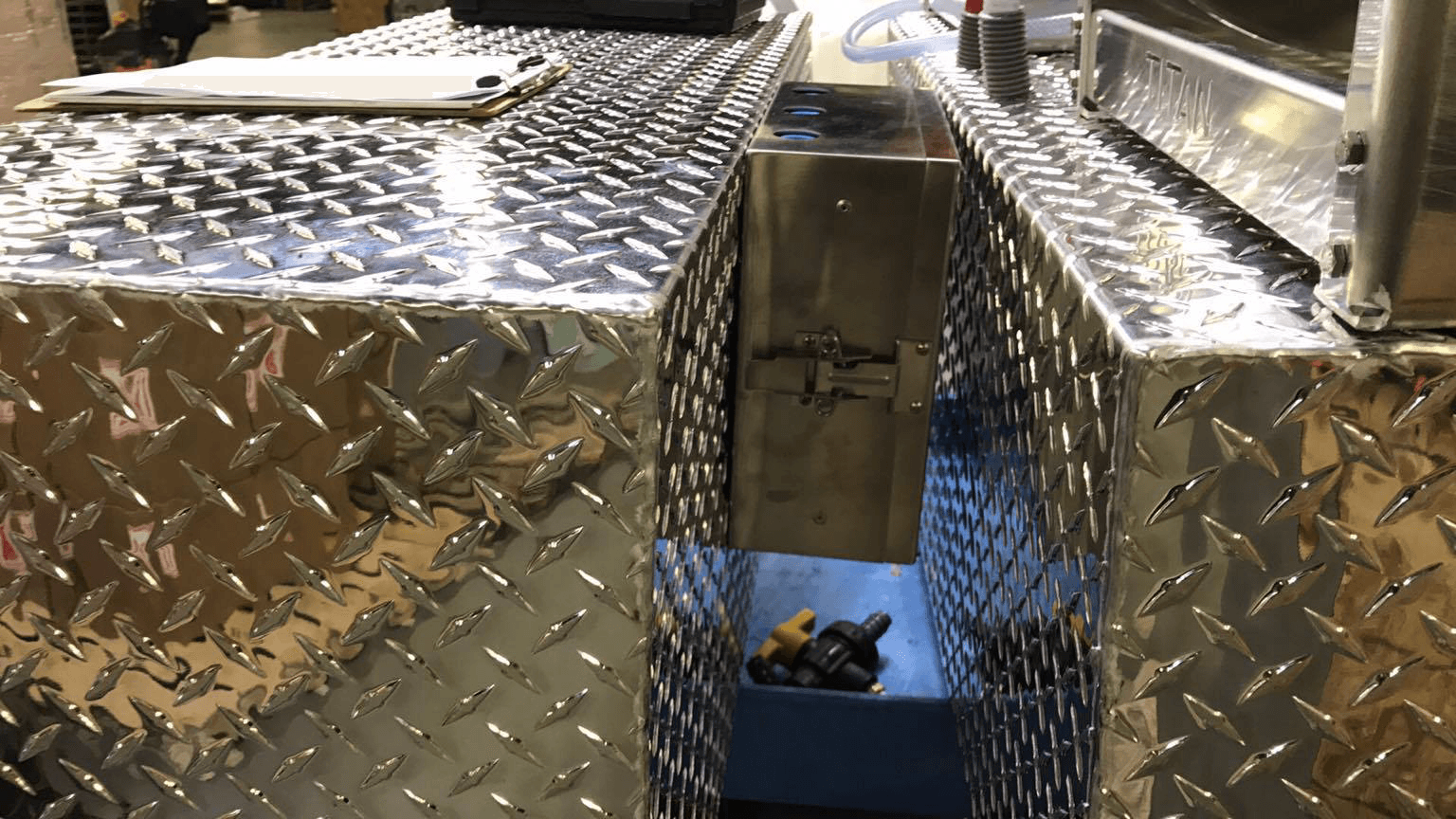

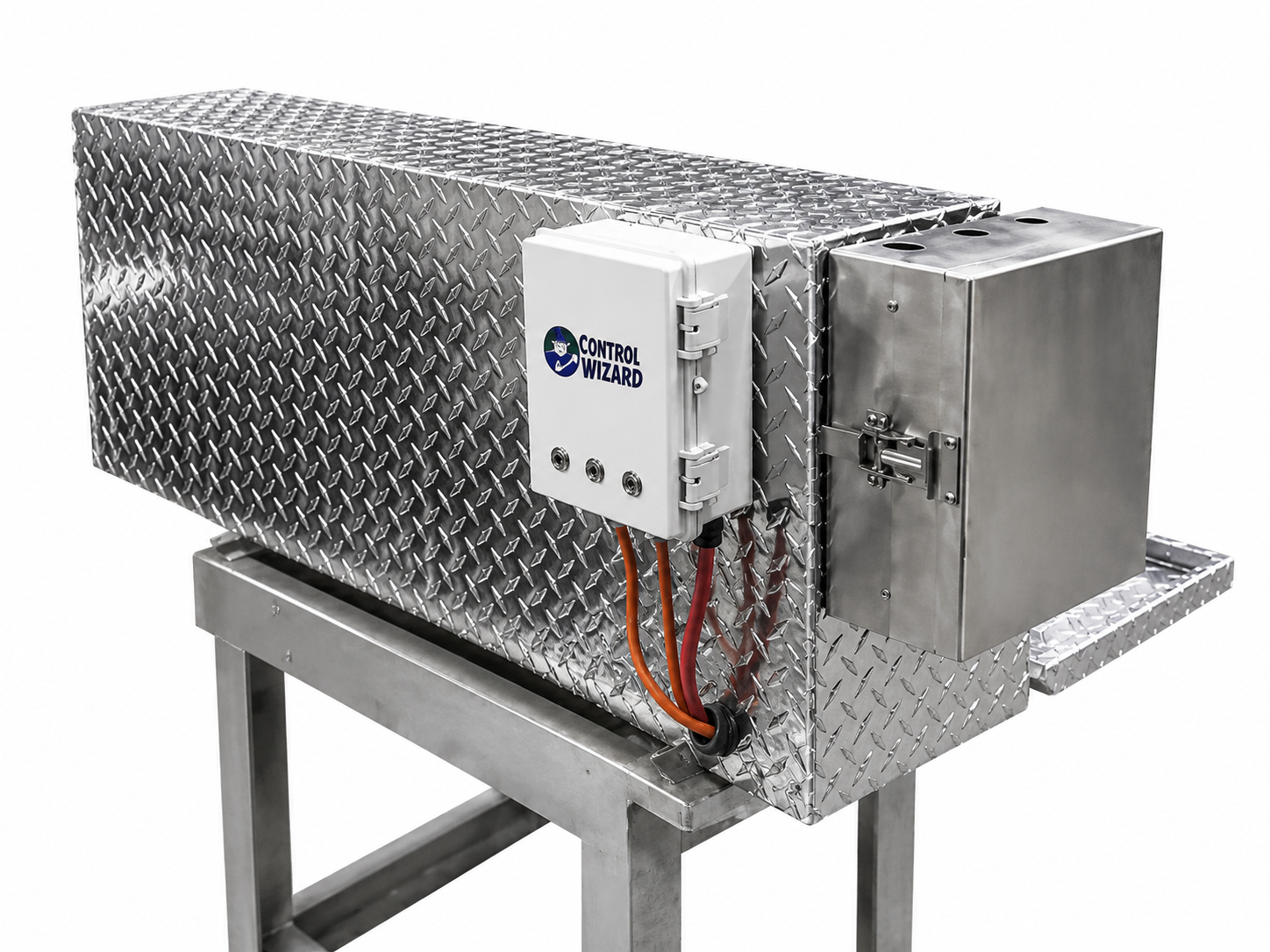

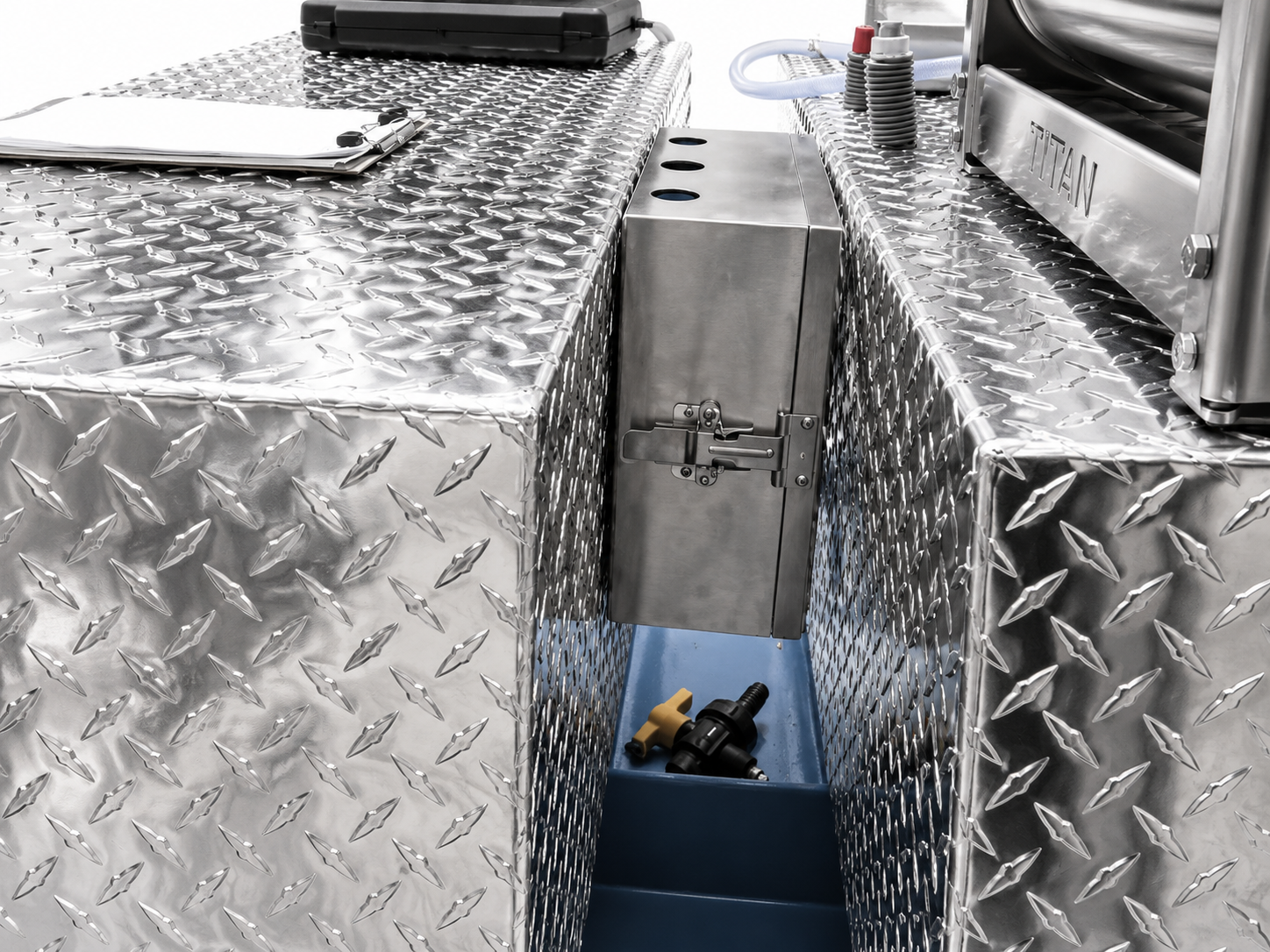

Booster in a Box (Bare Auto), 1HP 240V Softwash Pump Unit
Freight on quote. This is a large item, so we quote delivery to your door before you order.
Send us your postcode and we'll come back with the total price delivered to you. Prefer to collect? Pick-up is available from Biggera Waters, QLD.
The ultimate modular upgrade for contractors outgrowing 12V diaphragm pumps or replacing unshielded custom setups, the Booster in a Box delivers the performance of a 1HP 240V Goulds industrial booster pump inside a protective marine-grade aluminium enclosure. Engineered as a "bare" power station, it provides commercial softwashing power in a compact footprint—allowing operators to integrate high-reach 240V performance directly into their existing ute trays, service vans, or custom proportioner setups.
Equipped with an automatic pressure switch system, the unit senses when the spray trigger is closed and immediately shuts down the motor. This stops internal water recirculation, prevents thermal overheating, and protects pump seals from premature failure during long commercial spray jobs.
Dimensions & Specs
- Enclosure Dimensions: 1220mm L x 480mm W x 450mm H
- Pump Engine: 1.0 HP / 240V Industrial Goulds Multi-Stage Booster Pump
- Flow Performance: 20 L/min Continuous Output
- Vertical Lift Reach: 15m+ (3-Story Vertical Reach directly from ground level)
- Power Requirement: Standard 240V / 10A Electrical Connection
- Plumbing Ports: 1" (25mm) Inlet and Outlet Ports (High Flow & Low Cavitation Design)
- Frame Base: Marine-Grade Aluminium Enclosure with Pre-Drilled Mounting Holes
Key Operational Advantages
- Modular Integration: Designed for operators who already own chemical manifolds or tanks and require a standalone commercial 240V pump power center.
- Automatic Shut-off: Trigger-sensing auto pressure switch stops motor wear, cuts heat buildup, and eliminates manual pump cycling on site.
- Armoured Weather Protection: Fully encloses electrical components and motor housing inside a powder-coated marine-grade box to prevent salt air and sodium hypochlorite corrosion.
- Compact Tray Footprint: 480mm width mounts easily along tray sideboards, headboards, or tight van interiors without sacrificing floor space.
Because of its size and weight, freight for this item is quoted individually.
We use a range of freight providers to get you the best possible price. Request a quote above, or contact us.
We are happy to work with you if you need a return. Please contact us to discuss.

Request a Quote
Get a delivered price
Pop in your delivery postcode and any questions. Our team will come back to you with a freight quote, usually within one business day.
